Best Car Battery Tester: 4 Picks That Passed Our Checks

The BT100 does the three jobs most people need from one hookup. Its manual lists a battery test, a cranking test and a charging test, and grades the battery by remaining capacity: Good above 80%, Recharge from 50 to 80% and Replace below 50%. It covers 100 to 2,000 CCA and lets you choose among ten rating standards, including CCA, SAE, BCI, EN, DIN and JIS, so you can match whatever is printed on your battery label.

The manual is clear about its limits. It lists flooded, AGM flat-plate, AGM spiral, gel and EFB batteries and says not to use the tester on any other type. It runs from the vehicle battery and keeps only the most recent result. One detail did not line up: TOPDON’s product page describes the BT100 as a 12V tester, but its spec table also lists 6V and 24V test names. We go by the manual and the product description, which say 12V.

In price tracking, the BT100 has been listed since 2019, with a 365-day average sales rank around 1,400 in Amazon’s whole Automotive category and 2,000 or more units bought each month. Its rating count grew steadily over the past year with no sudden jumps, it is sold by TOPDON’s own store and shipped from Amazon’s warehouses, and its price stayed in a narrow band at or below its list price. It also carries the longest warranty of our picks: two years, per both the product page and the manual.

Verdict: the default choice for testing a 12V car battery at home. Choose the BT200 instead if you also work on 24V systems.

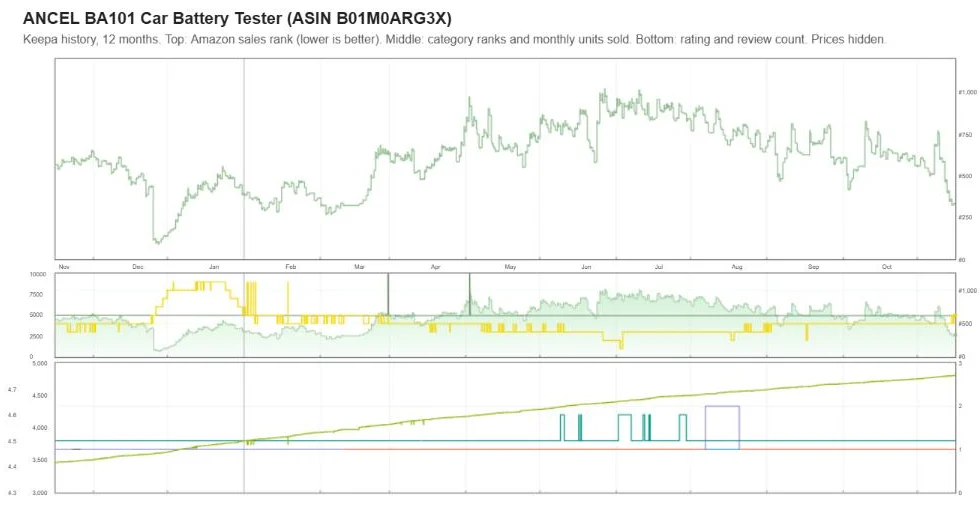

The BA101 has the longest track record of any digital tester we checked: listed on Amazon since 2016, with a 365-day average sales rank around 600 in Automotive and 4,000 or more units bought each month. Its rating count grew steadily over the year, a single seller ships it through Amazon’s warehouses, and its everyday price matches its list price, with occasional Prime-only discounts rather than inflated “was” prices.

The manual is what earned it a spot. It covers 100 to 2,000 CCA for most standards (100 to 1,400 for DIN and IEC), lists flooded, AGM flat-plate, AGM spiral, gel and EFB batteries, and says reverse polarity will not damage the tester, the vehicle or the battery. It also gives one of the most useful instructions we found: if the in-vehicle test says Replace, disconnect and retest the battery out of the vehicle before you buy a new one, because a poor connection can cause that result.

Two cautions. ANCEL’s own product page lists no CCA range or warranty; the one-year warranty and the specs above come from the manual. And the manual gives two different operating temperature ranges, −4°F to 140°F in one section and 32°F to 122°F in another, so treat readings taken on a very cold day with extra caution.

Verdict: a proven, low-cost tester that does the same core jobs as the BT100. The BT100 wins on warranty; the BA101 wins on track record and price.

If any of your equipment runs a 24-volt starting system, the BT200 is the TOPDON to get. Its manual lists the battery test as 12V only, but the cranking and charging tests work on both 12V and 24V systems, with a working range of 9 to 30 volts. So you test each 12V battery on its own, then test the whole 24V system with the engine cranking and running.

The manual gives charging reference bands for both systems: 13.2 to 15.0 volts is Normal on 12V, and 27.0 to 30.0 volts is Normal on 24V. It covers 100 to 2,000 CCA and 30 to 220 Ah, and lists flooded, AGM, gel and EFB batteries. TOPDON’s product page also claims 99.5% accuracy; we could not verify that figure, so we did not weigh it.

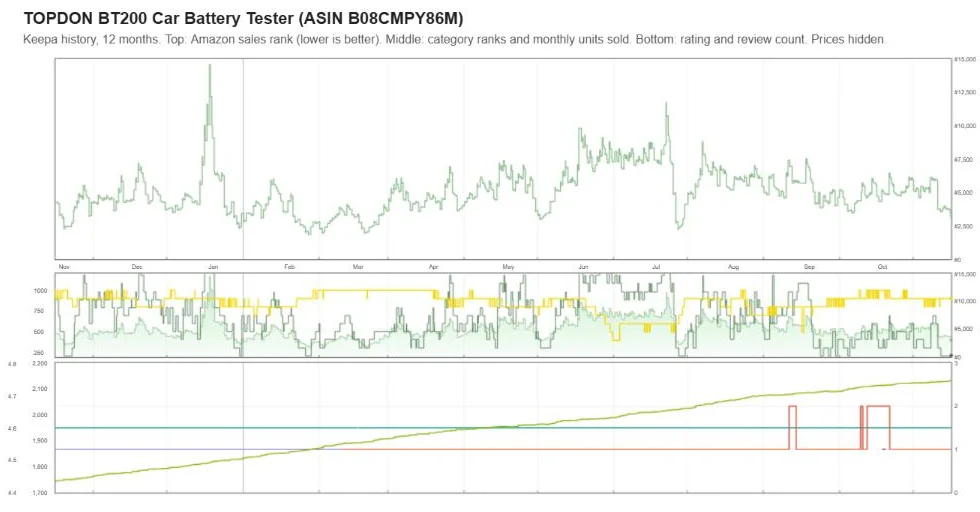

In price tracking, the BT200 has been listed since 2020, with a 365-day average sales rank around 5,000 in Automotive and 800 or more units bought monthly. Its rating count grew evenly, and both TOPDON and Amazon have sold it within a narrow price band. Its warranty is one year, half the BT100’s.

Verdict: worth the extra money only if you have 24V systems to check. For cars and light trucks, the BT100 does the same battery test for less.

The BT-100 works the old-fashioned way: it puts a real load on the battery and you watch a needle. Schumacher’s page lists a 100-amp load on 12V batteries and a 50-amp load on 6V batteries, for batteries up to 1,000 cranking amps, and says it also checks the charging system and starter draw. It is the only pick here that tests 6V batteries, which matters for classic cars, older tractors and some motorcycles.

The manual sets firm rules. Hold the load switch for no more than 10 seconds and let the tester cool for five minutes before you load it again. The metal housing can get hot enough to burn skin, so carry it by the handle, and remove rings and watches before you start. The manual also notes that a battery that is not fully charged can still show a good result, so charge it first if you want a meaningful reading.

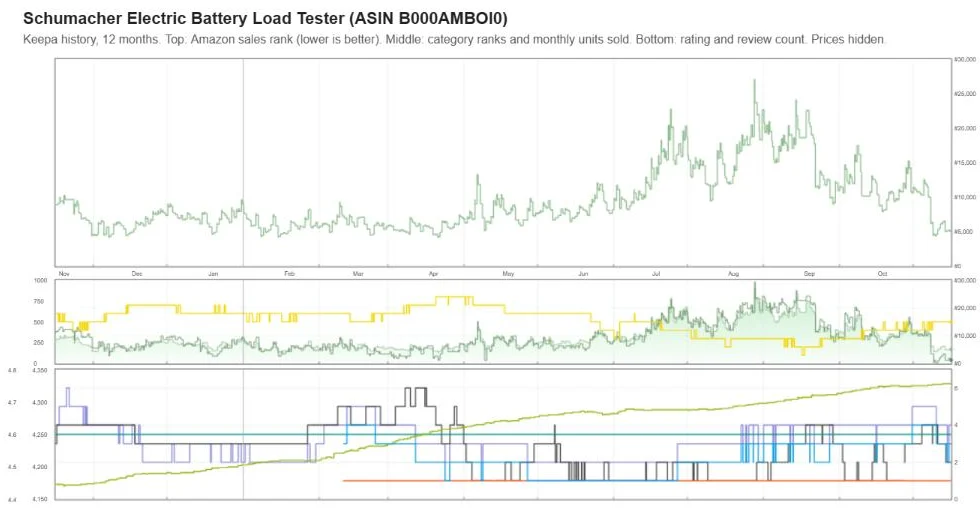

In price tracking, the BT-100 has been listed since 2003, is sold and shipped by Amazon, and moves 500 or more units a month. Its rating count is large and grows slowly and evenly. Amazon’s price moves within a set band over the year rather than jumping around. The weak spot is the warranty: six months, the shortest of our picks.

Verdict: the pick for 6V batteries and for anyone who trusts a needle under load. For a detailed health grade on a modern 12V battery, a digital tester tells you more.
